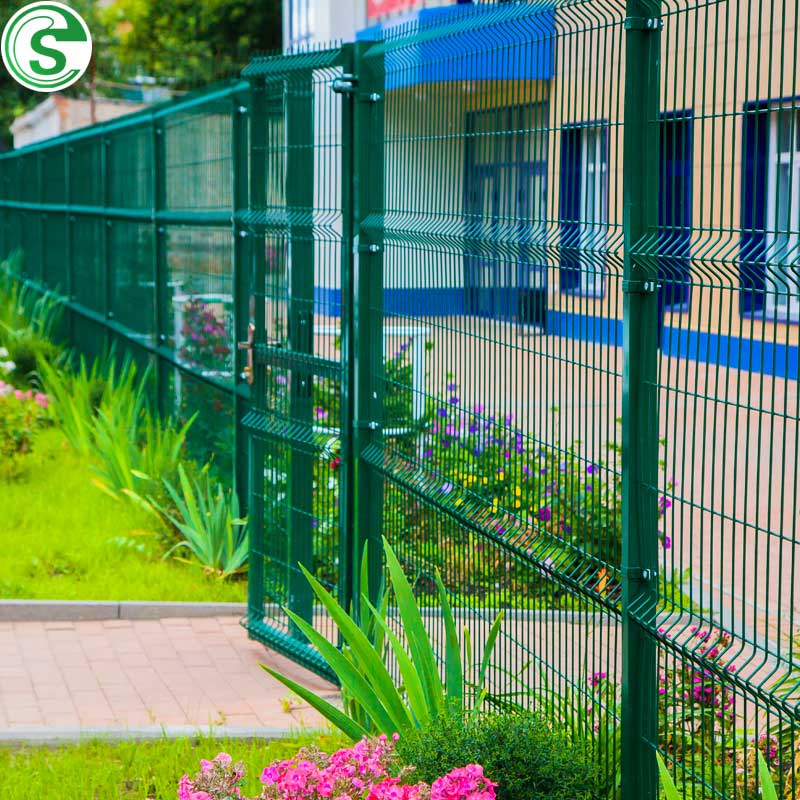

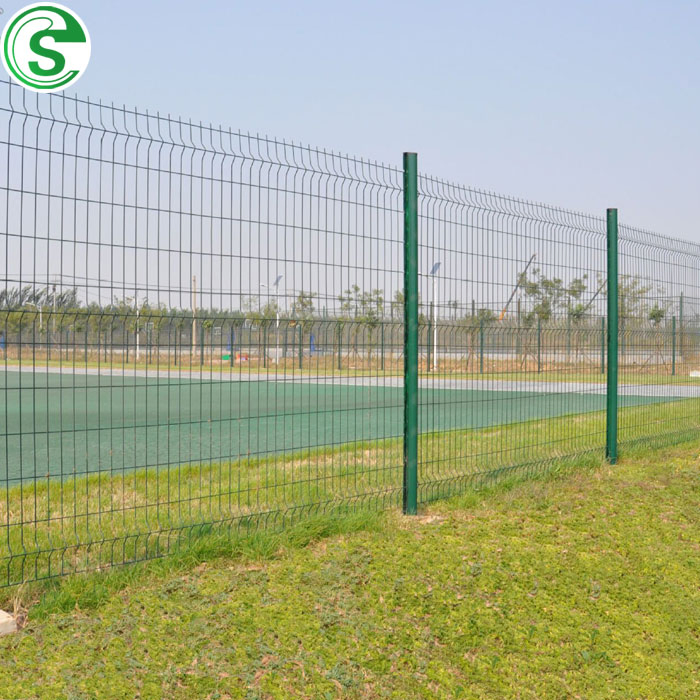

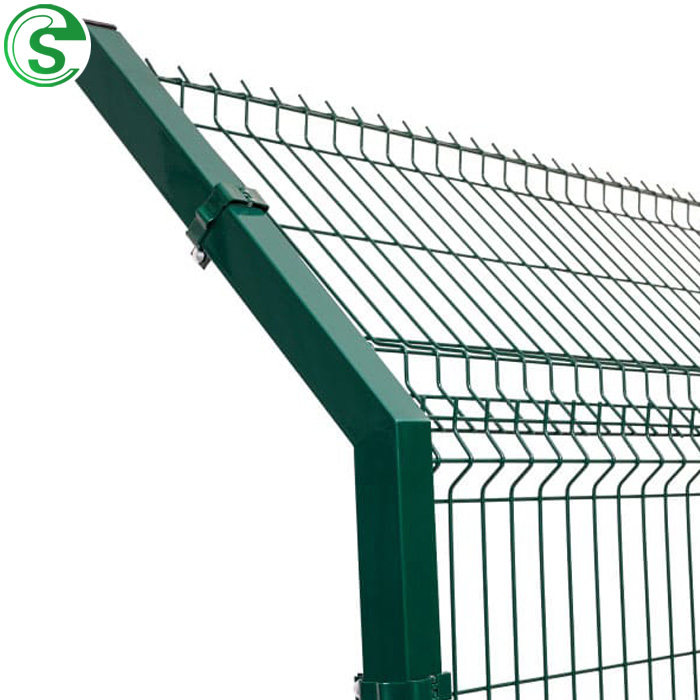

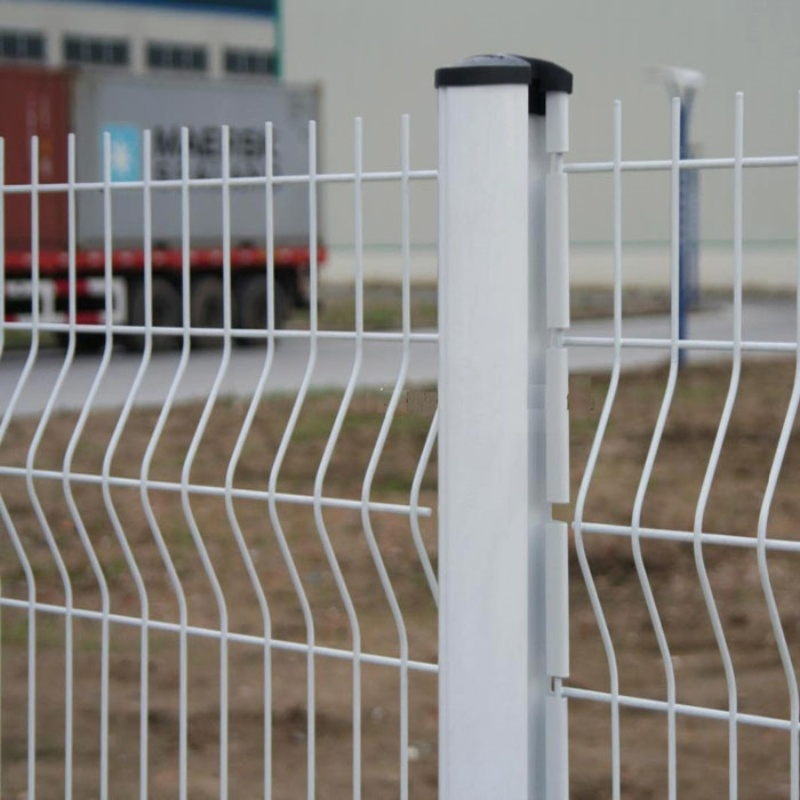

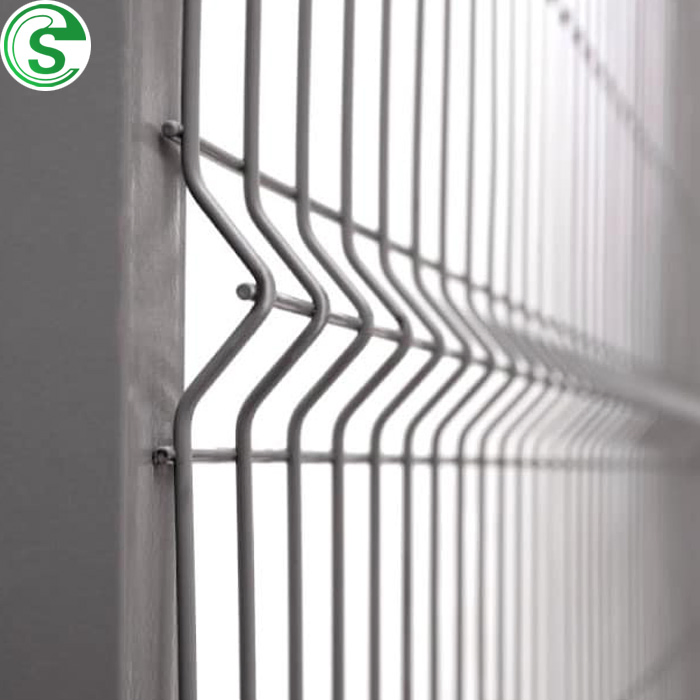

Industry Fencing Wire Mesh Outdoor Fence Panels 3D Fence with Square Post

Customization: Available
Technique: Welded
Certification: ISO9001, RoHS, CE

Product Description

Basic Information
Model NO.
04
Hole Shape
Rectangular
Frame Finishing
Powder Coated
Surface Treatment
Galvanized
Material
Iron
Width
2m, 2.5m, 3m (7FT, 8FT, 10FT)
Height
1.5m, 1.8m, 2m (5FT, 6FT, 7FT)
Color
Green, Black, White, Customized
Mesh Size
50X200mm, 60X150mm, 50X100mm
Quality Guarantee
8 to 10 Years
Wire Gauge
3-12 Guage (3.0mm-8mm)
Production Capacity
5000 Meters Per Week
Product Description
🛡️
Industry Fencing Wire Mesh Fence Panels 3D Fence with Square Post
Curvy Welded Mesh Fence are made of high strength welded wire mesh, can be used with various types of columns. This fence is not only of aesthetic appeal, but also 3D fence pattern provides strong, durable and flexible construction.

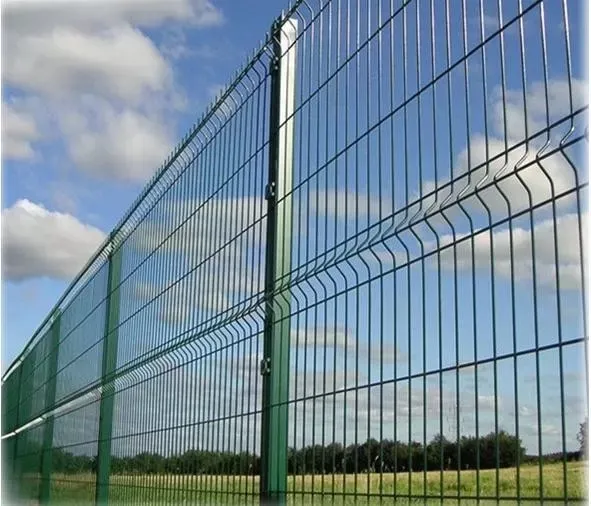

3D Fence Panel

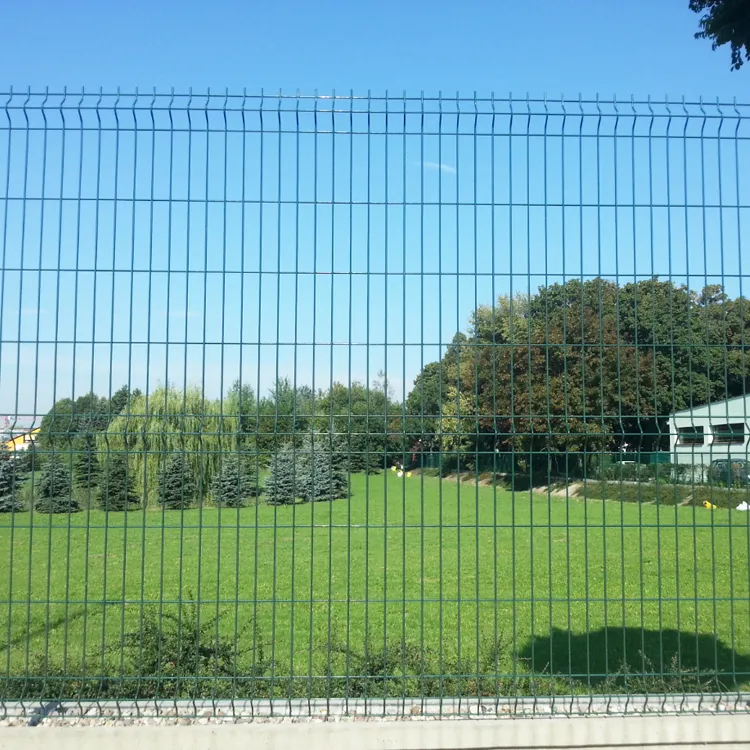

Fence Material
Specifications
Height(mm)1000; 1200; 1500; 1800; 2000; 2200; 2500; 3000
Post distance(mm)1500; 2000; 2500; 3000
Wire diameter(mm)3.5; 4.0; 4.5; 5.0; 5.5; 6.0
Mesh size(mm)50*100; 50*150; 50*200; 60*120; 65*200; 75*150
Post(mm)50*50; 60*60; 80*80; 40*60; 40*80; 50*70; 70*100
Optional postSquare, Round, Peach, I post, Trapezoid post
Surface treatmentPVC coated; Powder coated; Hot galvanized
Structure & Details

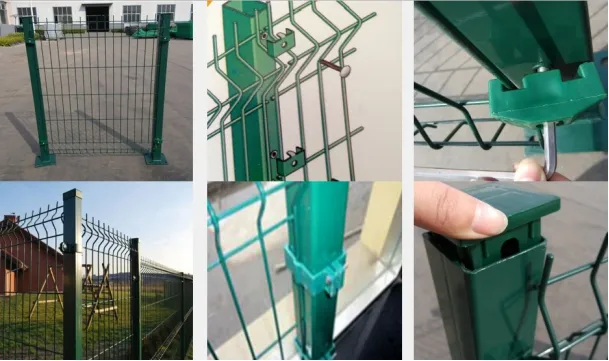

Standard Assembly: Triangle bending wire mesh fence panel + Square post + Clamp (plastic M clamp/plastic square clamp/Metal Claw Clamp) + plastic rain hat.

Fence Structure

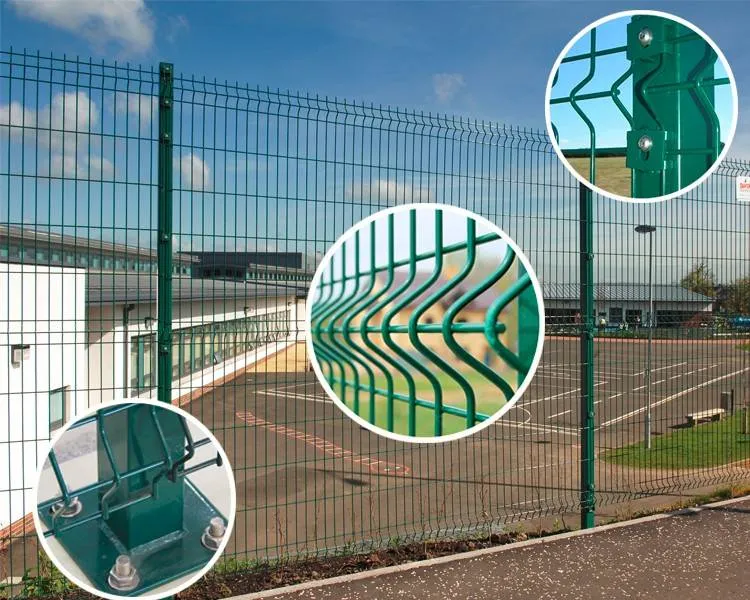

Detail Display
Clamps and Posts

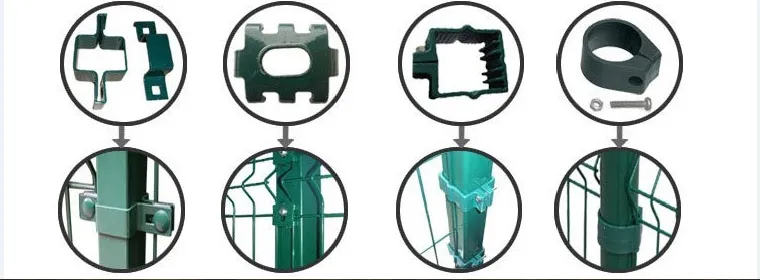

Clamps Style

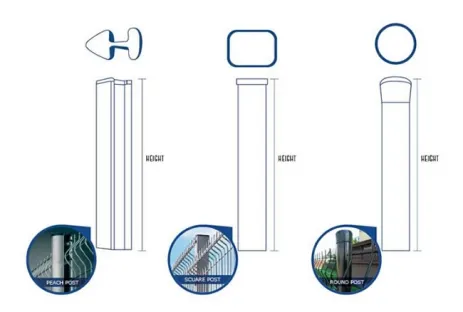

Post Style
Key Characteristics
💪
High Rigidity: Heavy welded mesh panels with rectangular meshes and horizontal reinforcements guarantee a high level of rigidity.
Long Service Life: The advanced coating technology assures an extra long life for the fencing system.

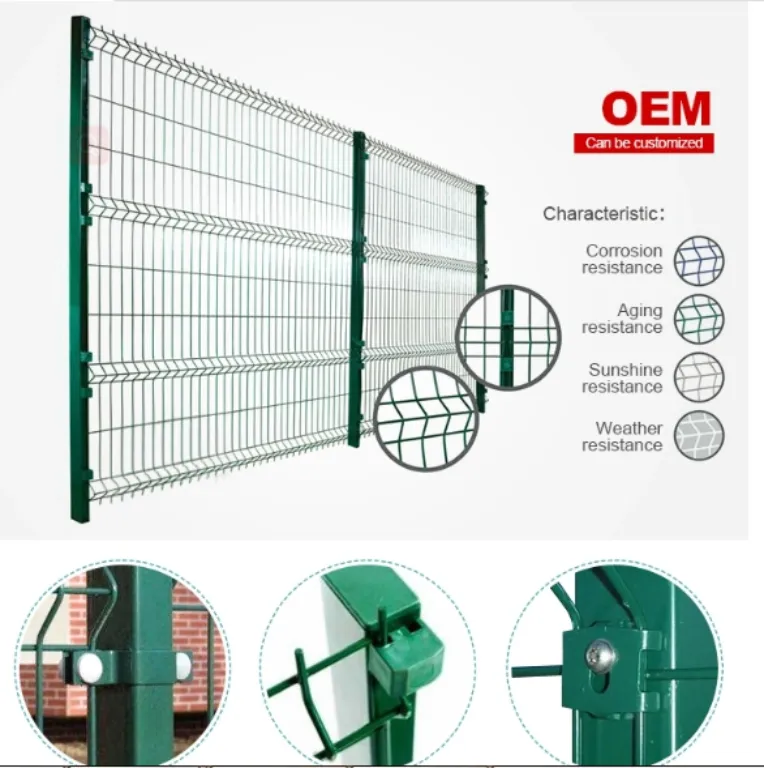

Characteristic Image
Applications

Ideal for: Factory, warehouse, sites, railways, roads, airports, garden, yard, and project perimeters.

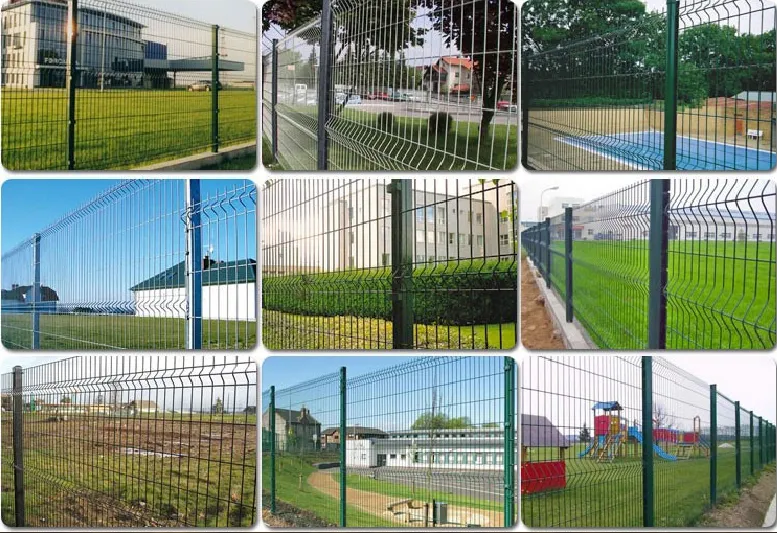

Application 1
Application 2
Application 3
Manufacturing Process

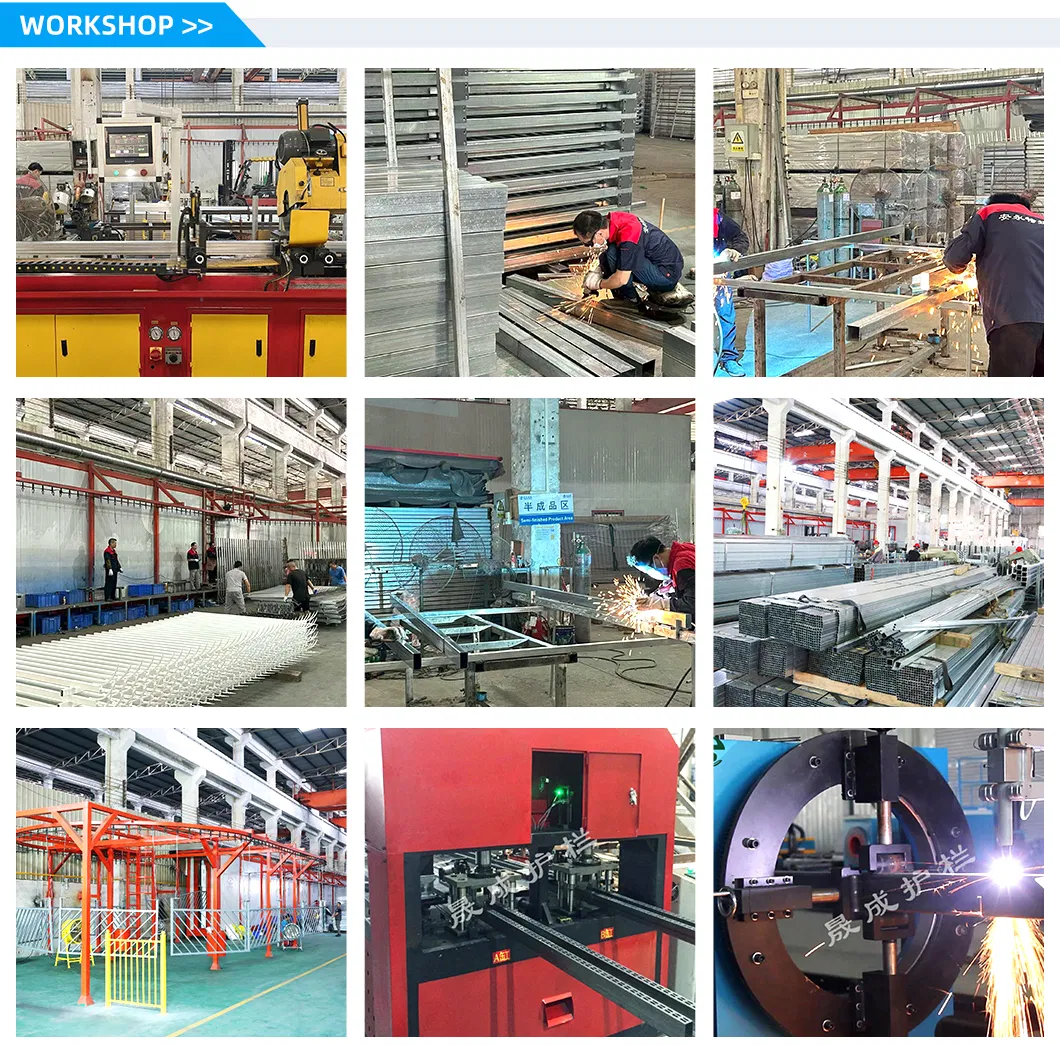

Process 1
Process 2
Process 3

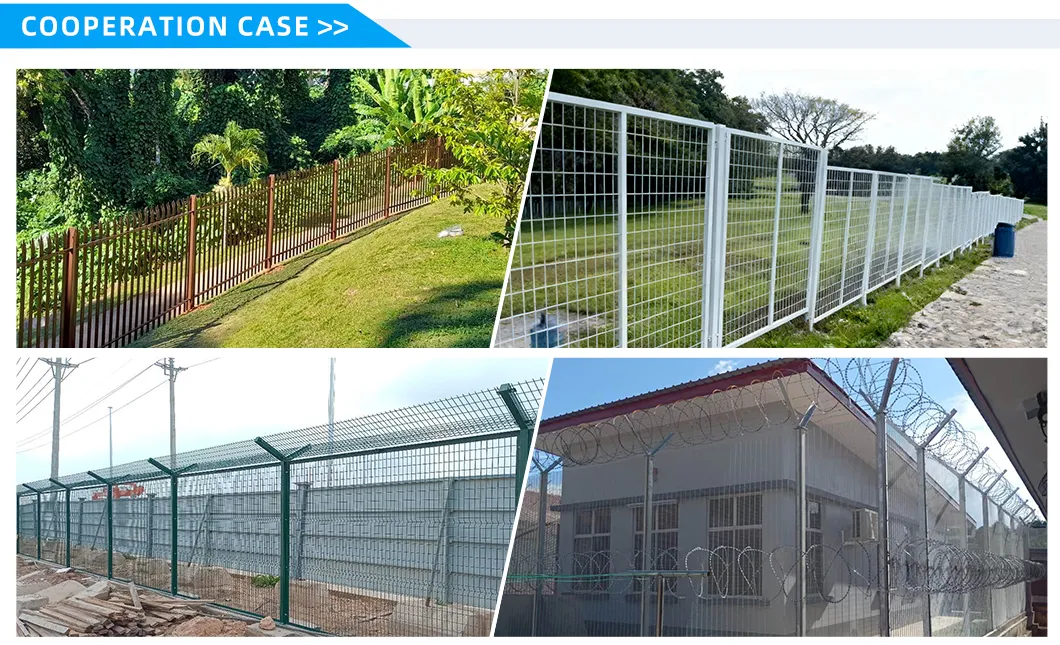

Process 4

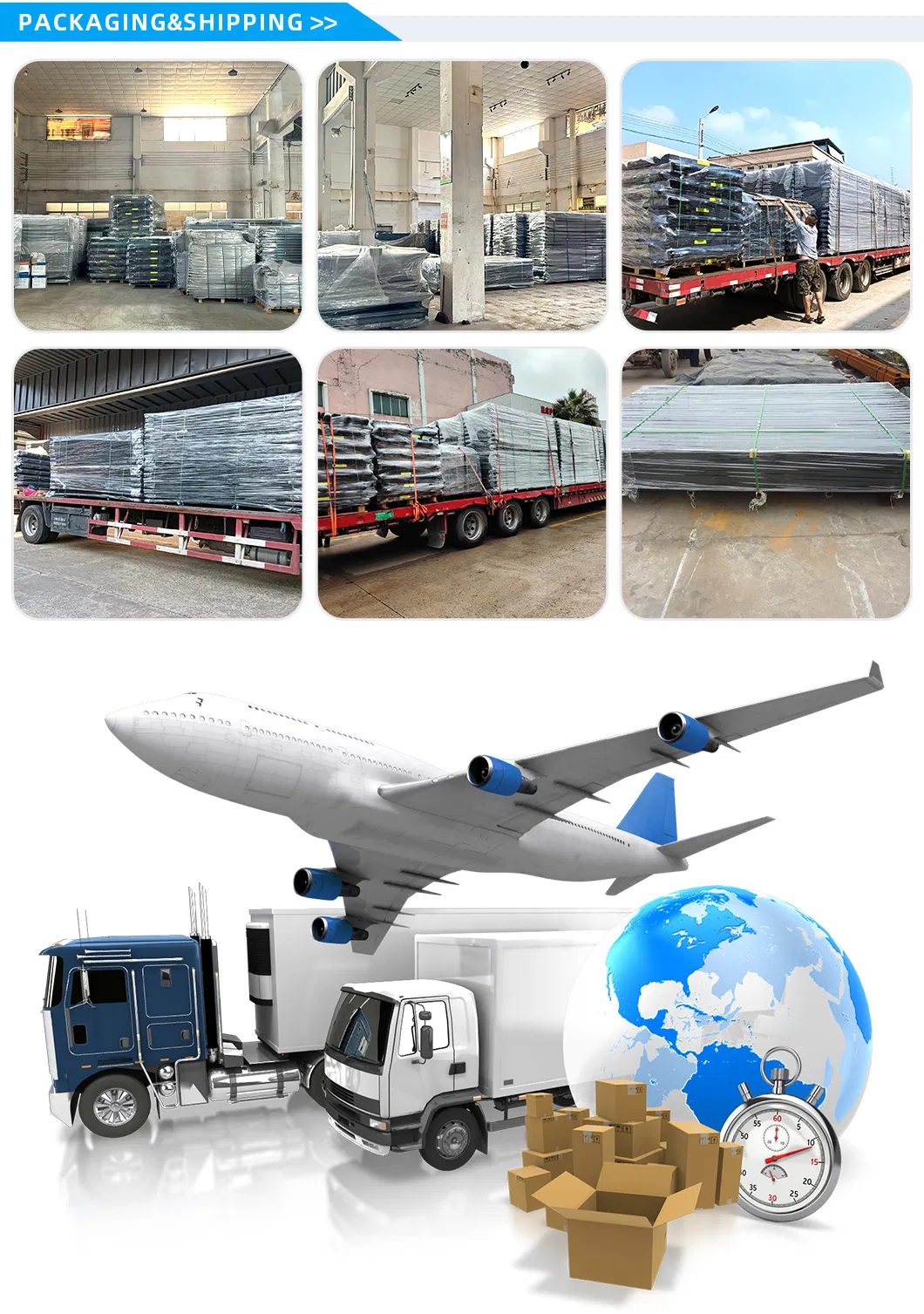

Process 5
Frequently Asked Questions
What information is needed for a quotation?
Please provide the specifications of the fence, such as the type, length, width, wire diameter, and mesh size to get the most accurate pricing.
Are you a professional manufacturer?
Yes, we have been providing professional products in the fence field for over 10 years with a strict inspection process to ensure quality.
What are the available payment methods?
The most common payment methods are T/T and Western Union, typically processed after confirming the Proforma Invoice (PI).
Can you manufacture fences based on custom designs?
Yes, custom designs are fully acceptable. You can send us your design drawings or pictures, and we will manufacture accordingly.
What is the expected quality guarantee for these fences?
Our 3D fence panels come with a quality guarantee of 8 to 10 years, thanks to our state-of-the-art coating and galvanizing technology.
What surface treatments do you offer for rust protection?
We offer several protective layers including Hot Dipped Galvanized (HDG), Galvanized + Powder Coated, and PVC Coated options in various colors.
