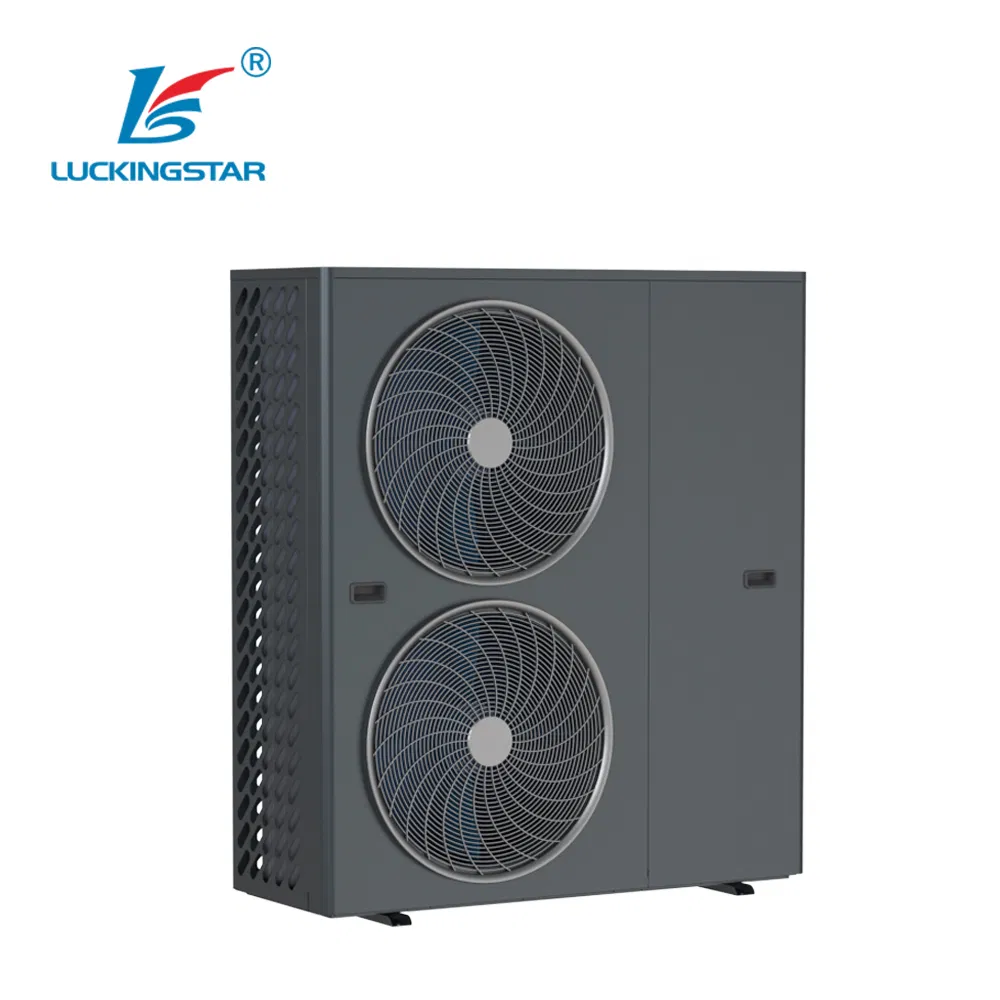

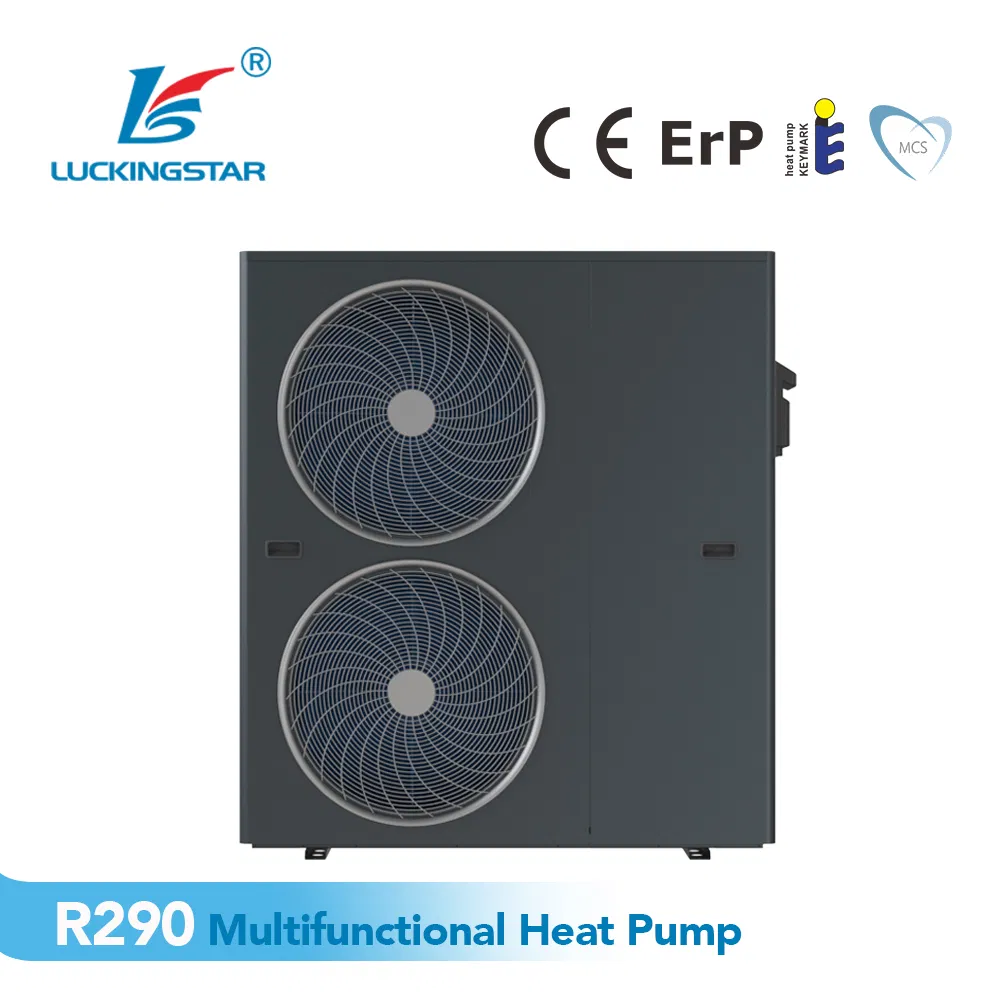

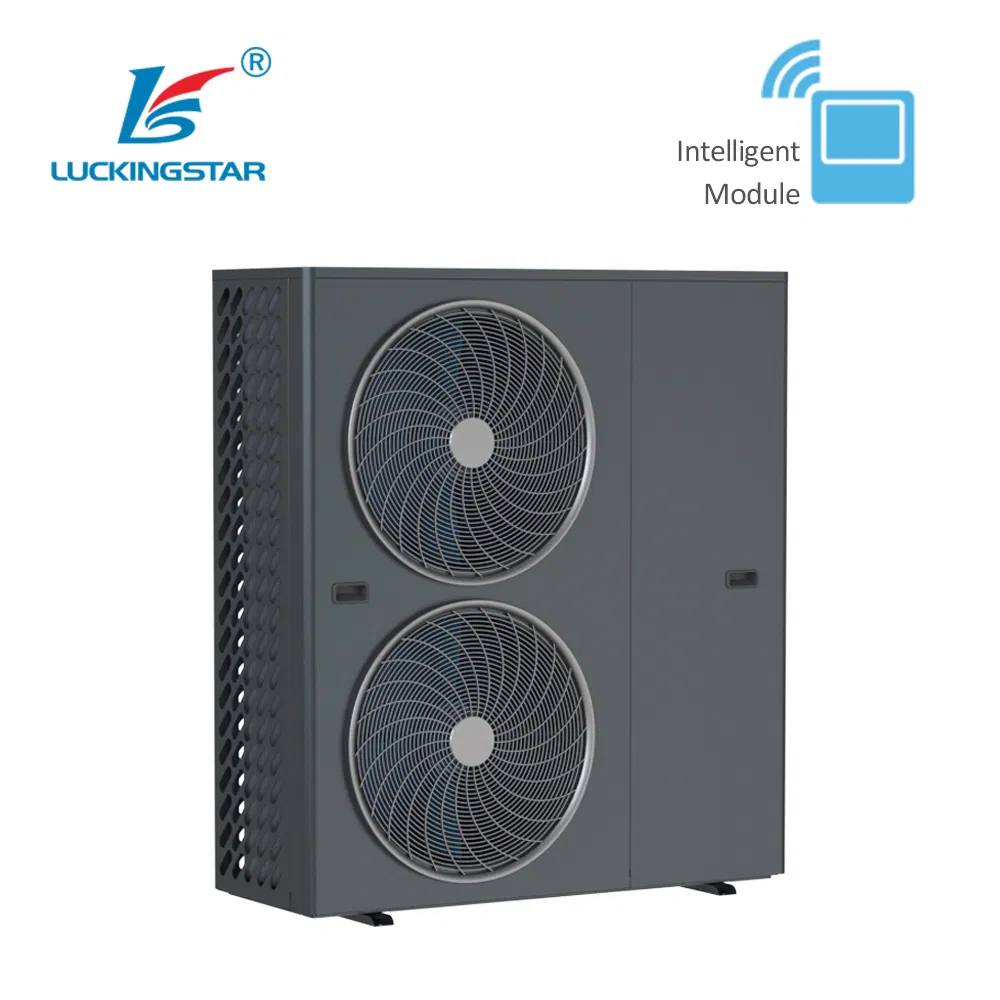

⚡ R290 MULTIFUNCTIONAL HEAT PUMP

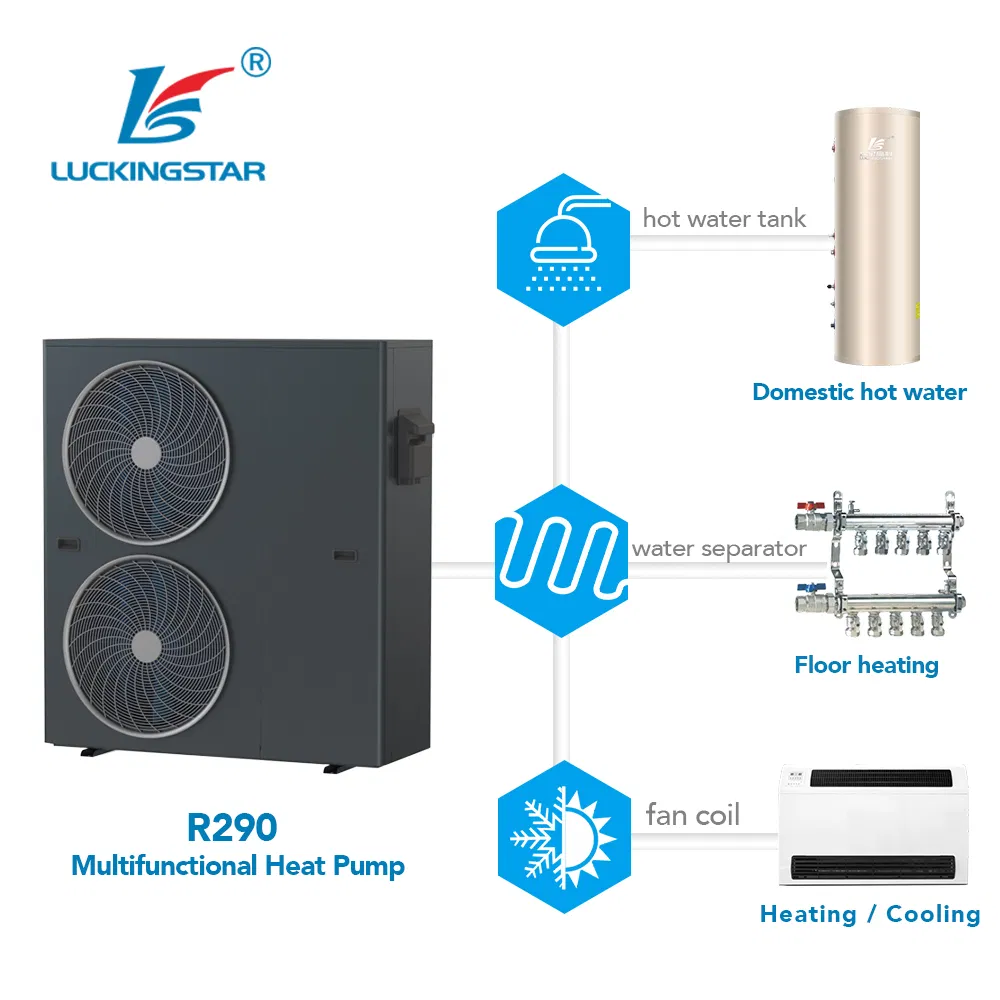

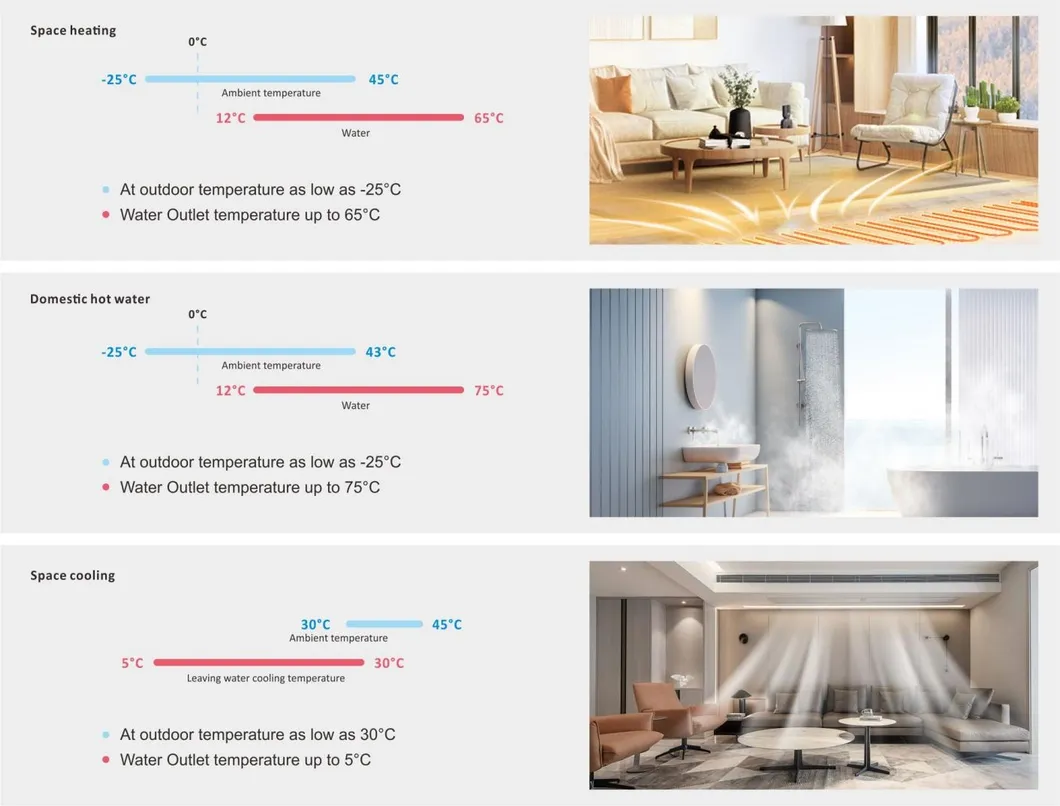

The perfect performance of the R290 Heat Pump meets year-round needs for house heating, cooling, and domestic hot water. It operates stably and reliably even at -25ºC.

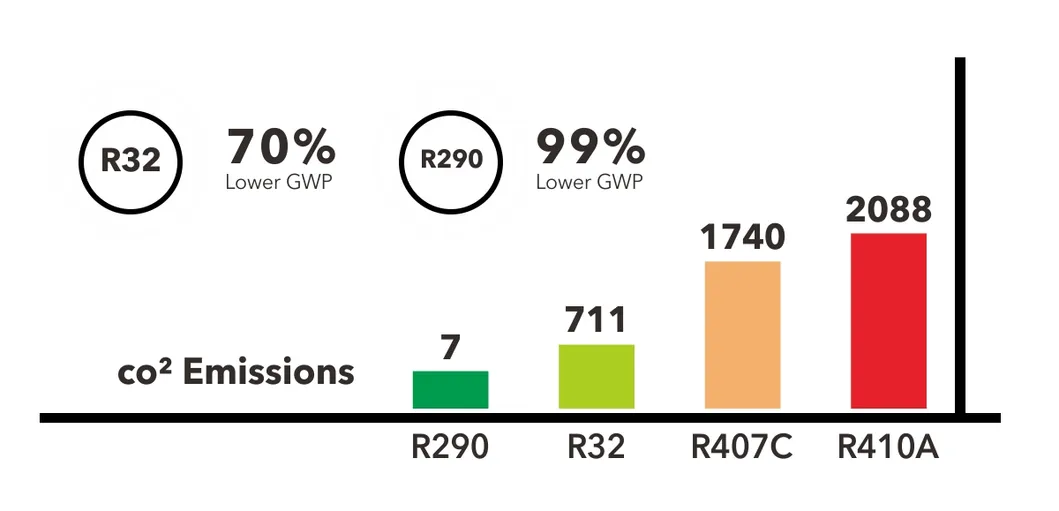

R290 (propane) is a natural refrigerant with high thermal conductivity and low GWP. It offers unique adaptability to various climates and can extend compressor life while saving up to 30% energy compared to traditional systems.

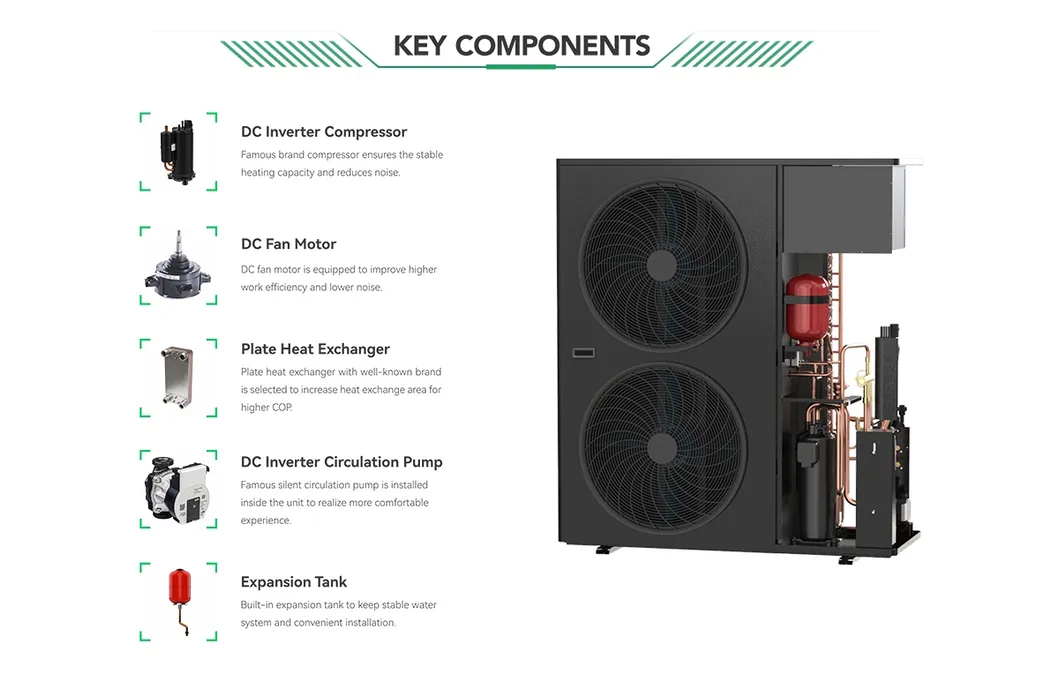

We utilize high-end components from world-famous enterprises to ensure stable and efficient operation.
DC Inverter Compressor: Matches energy input to required output precisely, reducing noise and consumption.
Sound Proof Isolation: Full wrapping with sound-proof sponge material effectively blocks operational noise.
Electronic Expansion Valve: Instantly adjusts refrigerant flow for refrigeration system stability.
High Leaving Water Temperature: Reaches up to 75°C, making it an ideal solution for retrofitting projects to replace gas boilers with radiators.
Low Ambient Performance: Maintains 100% rated output even at -10°C ambient temperature. Features intelligent defrost logic based on actual frost conditions.

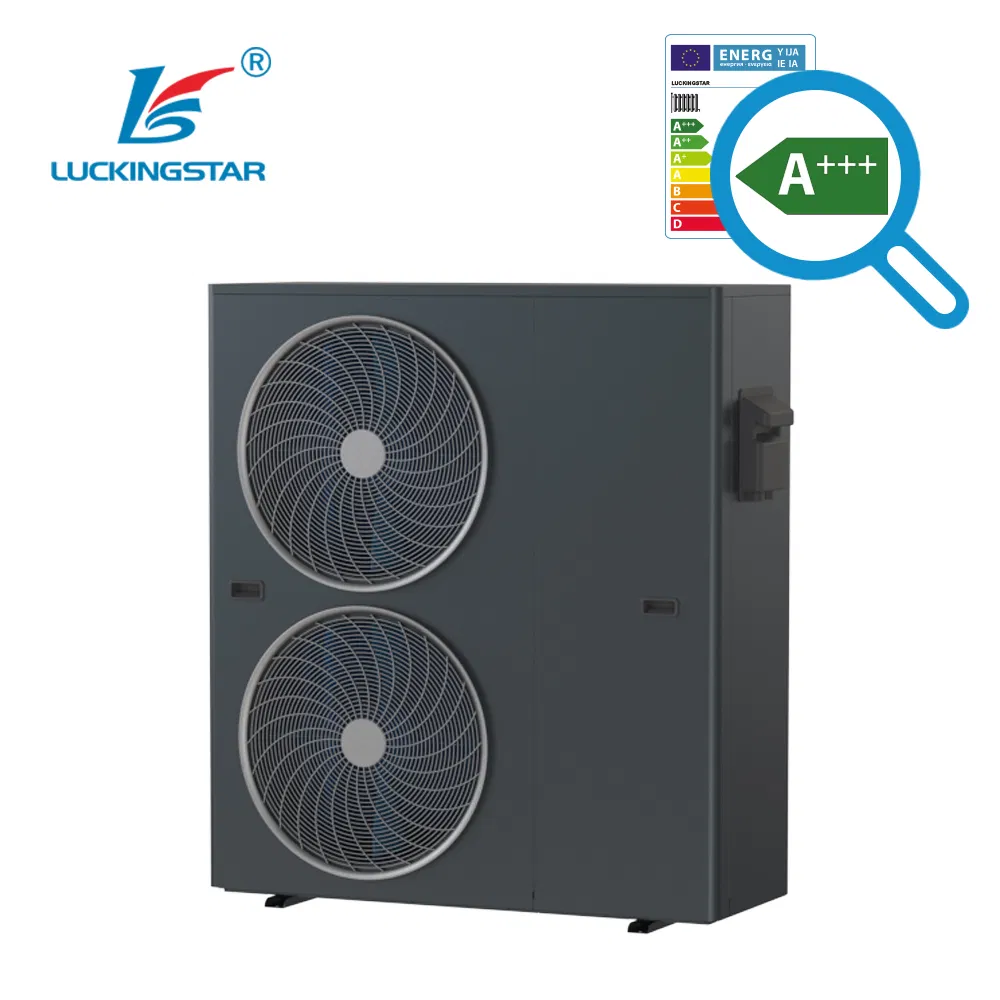

Energy Efficiency: Achieves A+++ energy rating for both 35°C and 55°C water conditions.

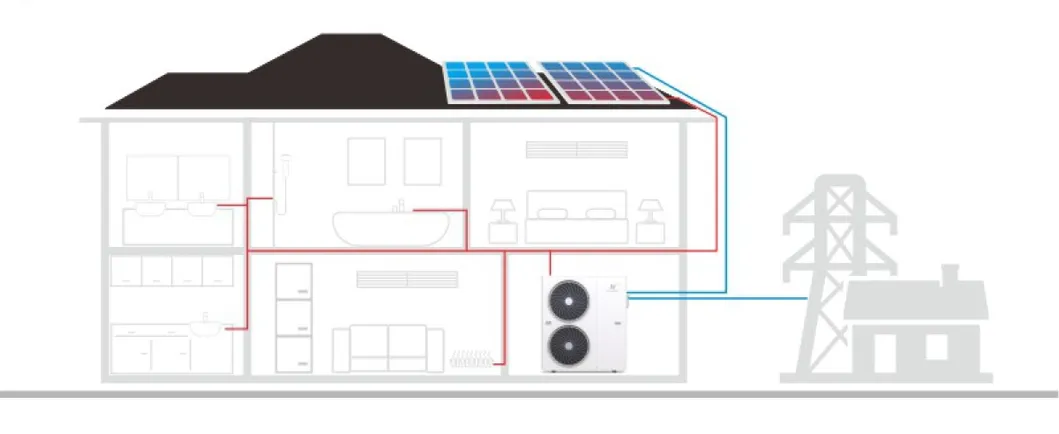

Smart Grid Ready (SG Ready): Automatically stores surplus energy from PV systems to take advantage of cheaper electricity tariffs.

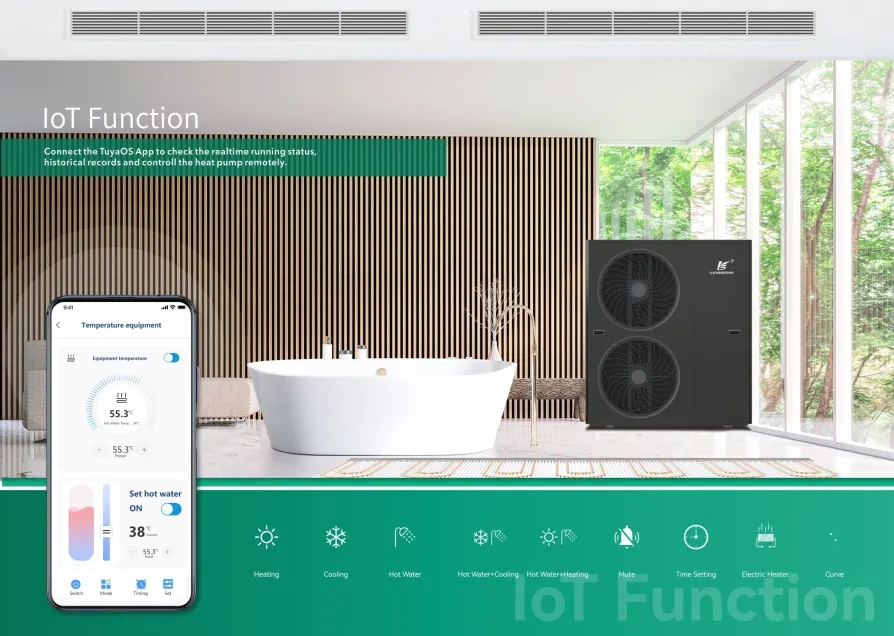

Visualized Display: Energy reports allow users to monitor consumption on a daily, monthly, or yearly basis.
| Model | F8HVLZPN9 | F11HVLZPN9 | F15HVLZPN9 | F11HVZPN9 | F15HVZPN9 | F18HVZPN9 |
|---|---|---|---|---|---|---|
| Power Supply | 220~240V~/50Hz | 380~415V/3N~/50Hz | ||||
| Heating Capacity (kW) | 3.50~8.25 | 4.50~11.35 | 6.00~15.12 | 4.58~11.36 | 6.08~15.10 | 6.79~17.98 |
| Power Input (kW) | 0.58~1.82 | 0.78~2.51 | 1.04~3.34 | 0.79~2.51 | 1.05~3.34 | 1.12~3.99 |
| COP Range | 6.00~4.53 | 5.76~4.52 | 5.77~4.52 | 5.79~4.52 | 5.79~4.52 | 6.06~4.50 |
| Max. Outlet Temp (℃) | 75 | |||||
| Refrigerant Type | R290 | |||||
| Net Weight (kg) | 120 | 136 | 150 | 150 | 160 | 175 |
| Dimensions (mm) | 1159×479×875 | 1339×529×1480 | 1159×479×875 | 1339×529×1480 | ||
